1.66寸液晶屏圆屏400X400 LCD MIPI 接口 IPS全视角智能手表显示屏

屏幕简介

YX16601G01-02M是一款彩色有源矩阵液晶模组
结合非晶硅TFT（薄膜晶体管）。它
由彩色TFT-LCD面板、驱动IC、FPC和背板组成
光单元。模组显示区包含400X400像素，可
显示多达 262K 色。本产品符合RoHS
环境标准。

屏幕参数

产品型号 YX16601G01-02M
LCD 类型常黑显示
透射式液晶显示器
观看方向 IPS(Full View) O’ Clock
模块外形 (W x HxD) 42.94 x45.87×2.0 mm
有效区域 (WxH) 39.84 x39.84 毫米
点数 400(RGB) x400
驱动IC ST7797
颜色 262K
背光类型 2 LED 并联
接口类型 MIPI 接口
输入电压 2.8~3.2V

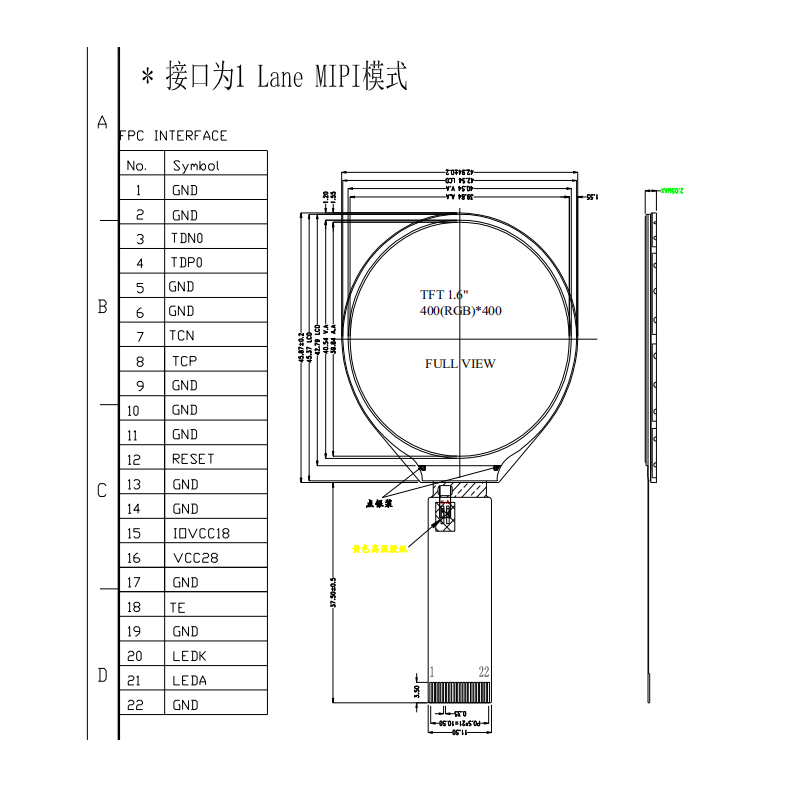

引脚定义

1,2 GND Ground
3 TDN0 Negative polarity of low voltage differential data signal.
4 TDP0 Positive polarity of low voltage differential data signal.
5,6 GND Ground
7 TCN Negative polarity of low voltage differential clock signal.
8 TCP Positive polarity of low voltage differential clock signal.
9~11 GND Ground
2 RESET
This signal will reset the device and it must be applied to
properly initialize the chip.
13,14 GND Ground
15 IOVCC18 Power Supply for I/O system.(1.8V or VCC)
16 VCC28 Power Supply for Analog, Digital System and Booster Circuit.
17 GND Ground
18 TE Tearing effect output. If not used, leave this pin open.
19 GND Ground
20 LEDK back light power supply negative
21 LEDA back light power supply positive
22 GND Ground
