宇锡3.1寸屏幕480*800Mipi接口1100nit亮度阳光下可视屏配电容触摸

深圳宇锡专注最高端场景运用的液晶屏模组研发&生产。定制高亮屏，阳光下可视屏，亮度超过1000nit亮度的屏幕是我们重要的产品方向。我们严格甄选适配高低温可以过双85试验的液晶面板，屏幕和触摸驱动IC以及各种元器件，辅料。适配我们宇锡全新打造的高亮，可散热，亮度均一度超过百分之85的背光模组。让我们阳光下可视系列就算带上屏蔽膜，前加热可以满足亮度800-1500nit，满足阳光下可视。

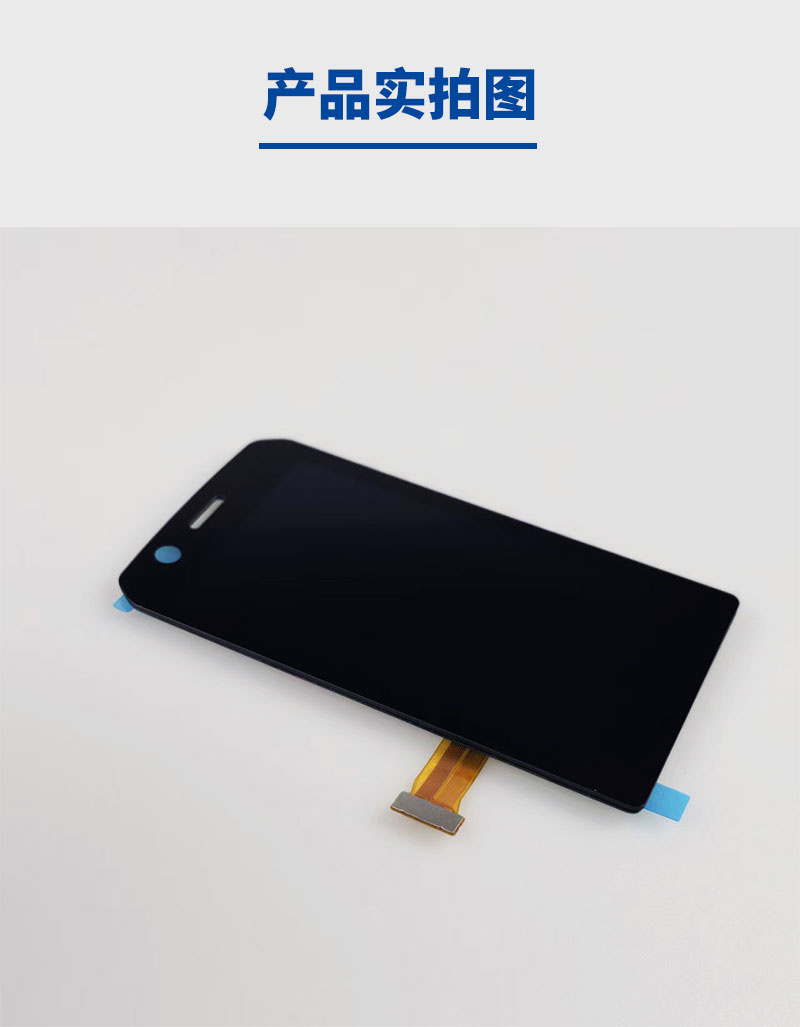

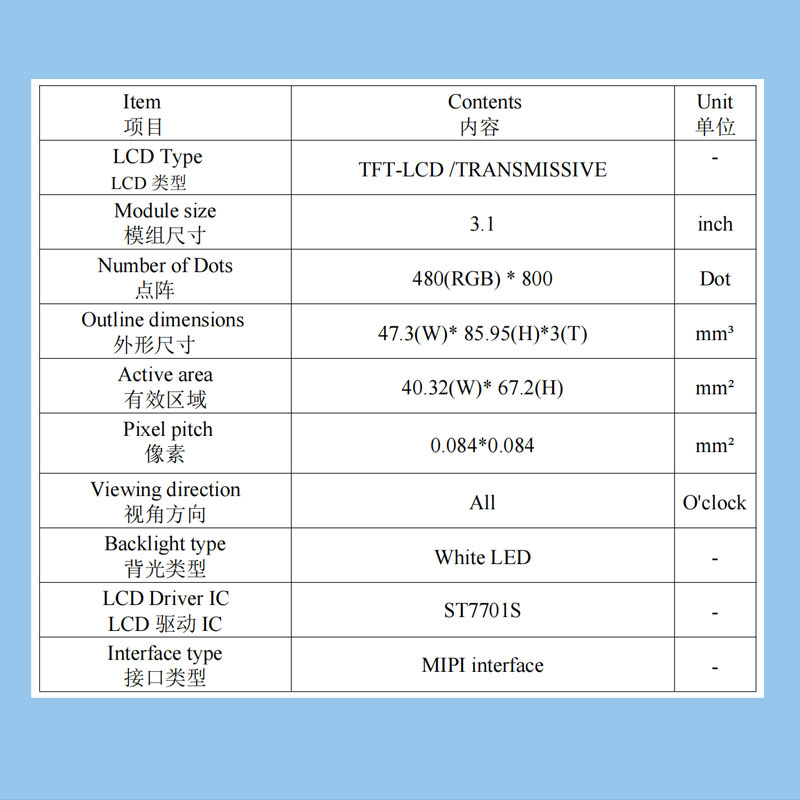

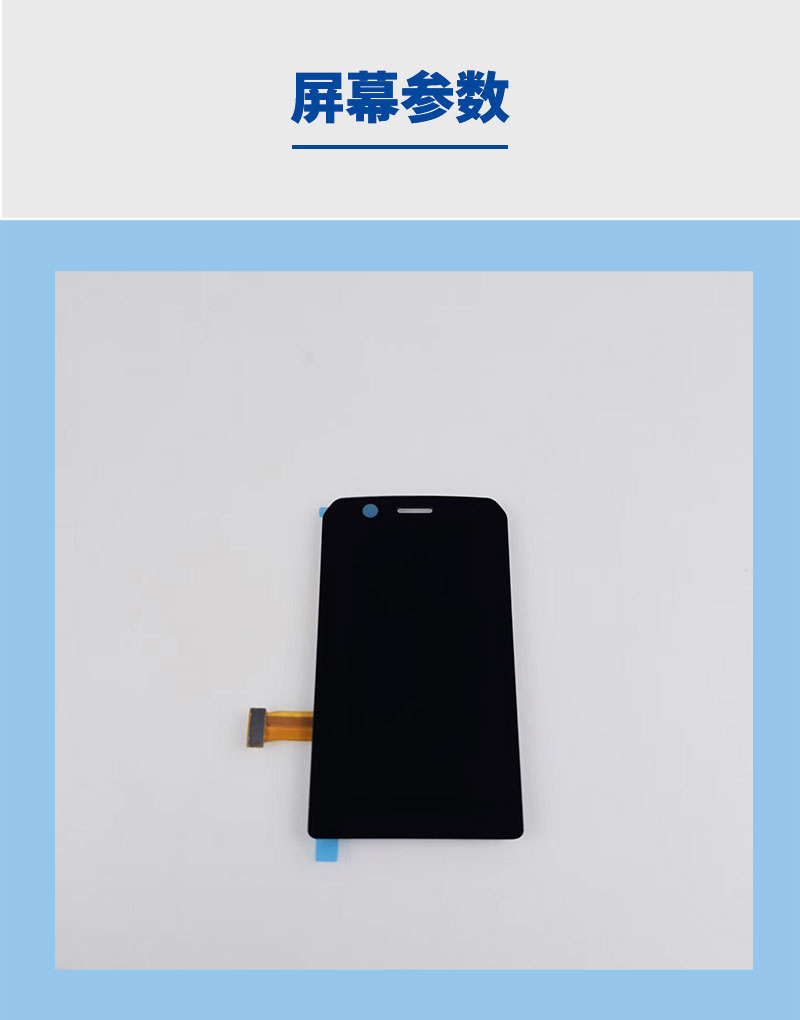

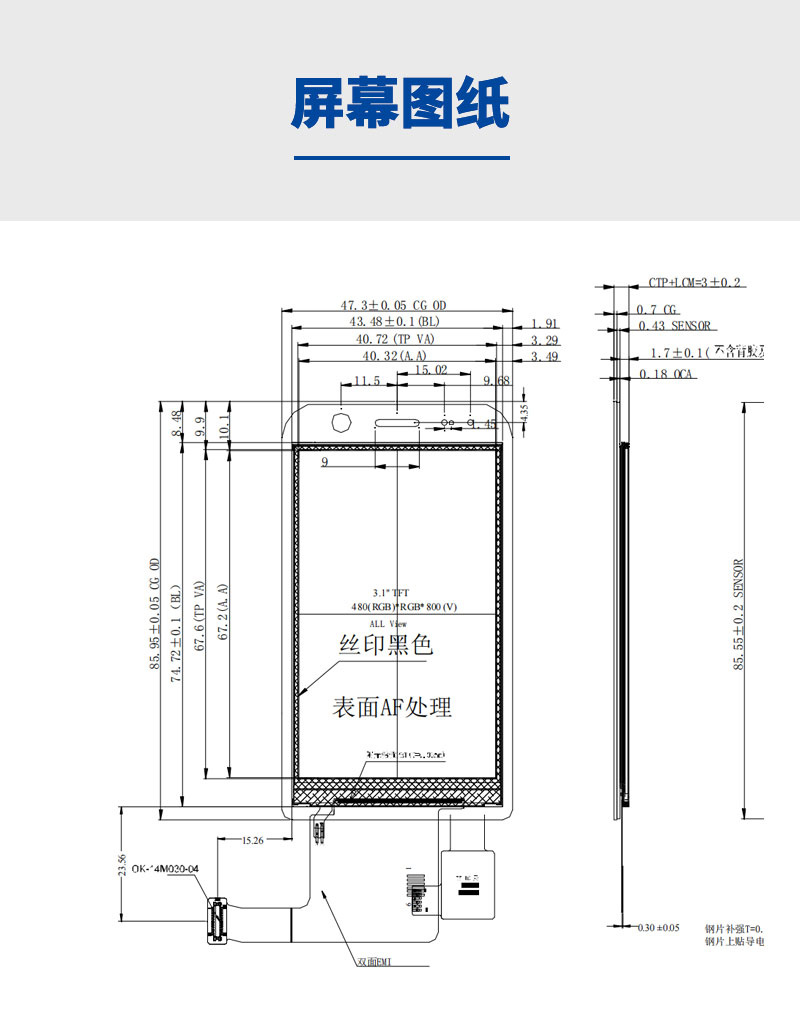

基本描述

LCD 类型 TFT-LCD /TRANSMISSIVE
模组尺寸 3.1 inch
点阵 480(RGB) * 800 Dot
外形尺寸 47.3(W)* 85.95(H)*3(T) mm³
有效区域 40.32(W)* 67.2(H) mm²
像素 0.084*0.084 mm²
视角方向 All
背光类型 White LED
LCD 驱动 IC ST7701S
接口类型 MIPI interface

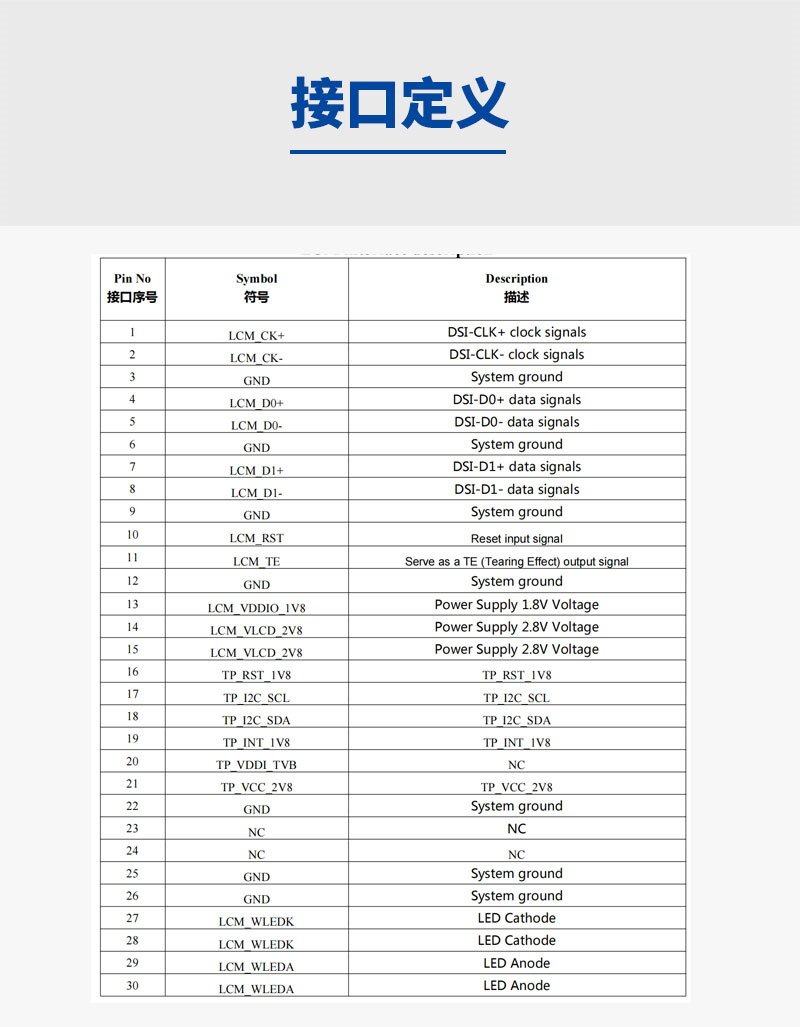

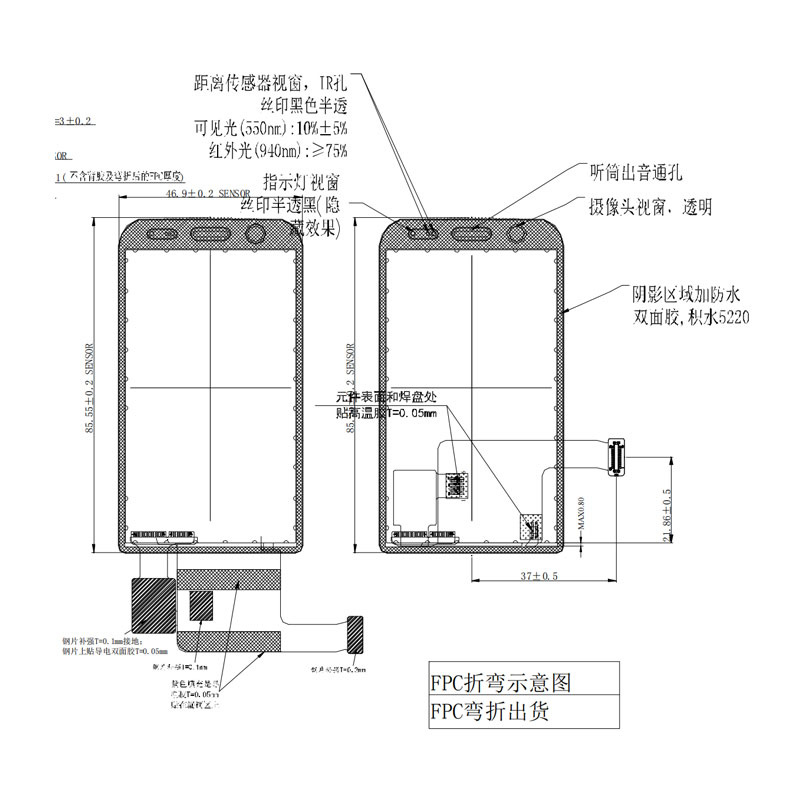

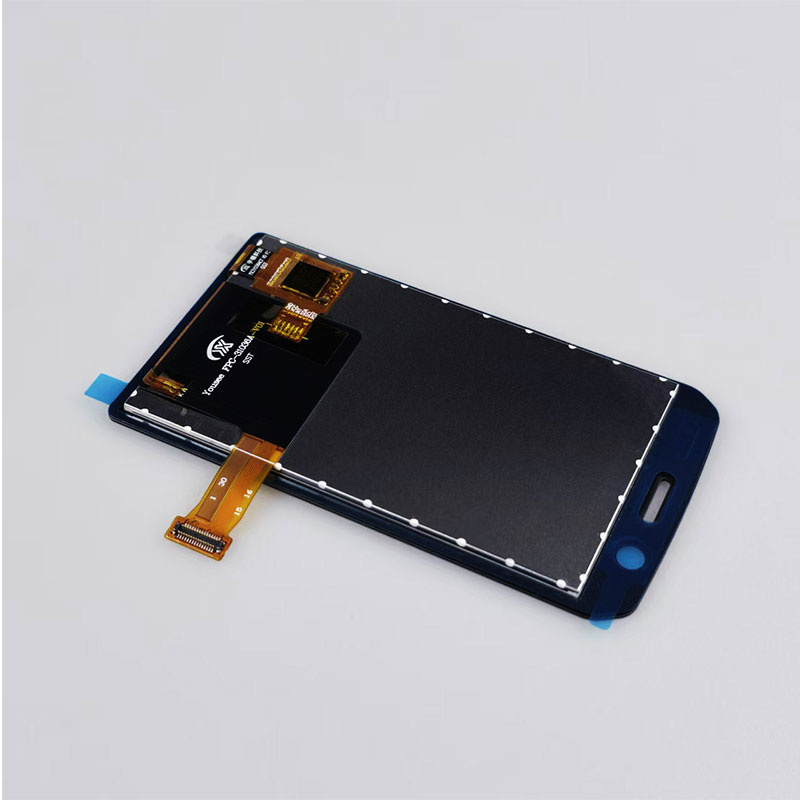

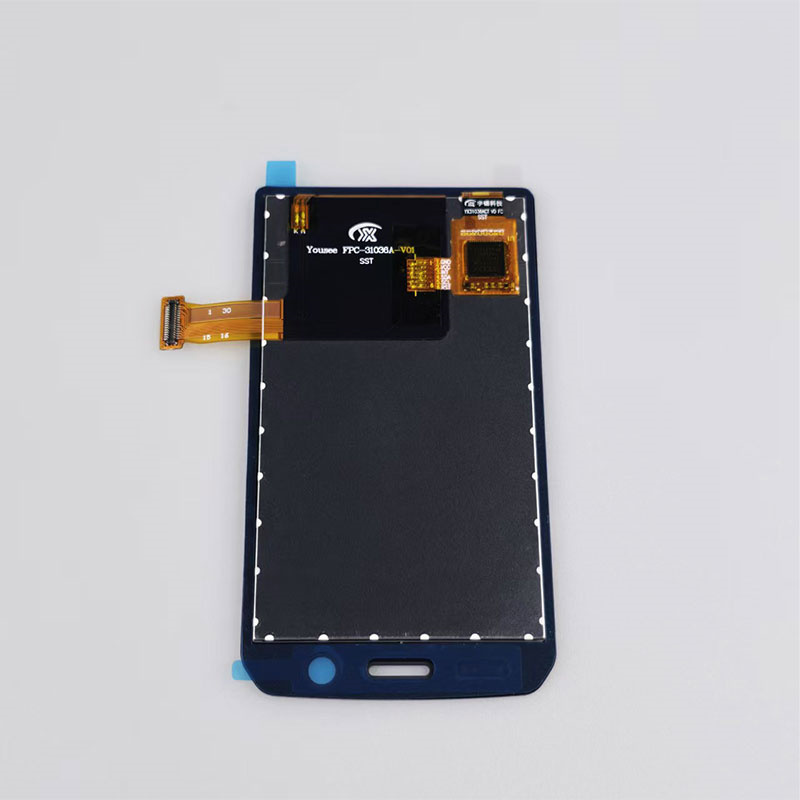

接口定义

1 LCM_CK+ DSI-CLK+ clock signals
2 LCM_CK- DSI-CLK- clock signals
3 GND System ground
4 LCM_D0+ DSI-D0+ data signals
5 LCM_D0- DSI-D0- data signals
6 GND System ground
7 LCM_D1+ DSI-D1+ data signals
8 LCM_D1- DSI-D1- data signals
9 GND System ground
10 LCM_RST Reset input signal
11 LCM_TE Serve as a TE (Tearing Effect) output signal
12 GND System ground
13 LCM_VDDIO_1V8 Power Supply 1.8V Voltage
14 LCM_VLCD_2V8 Power Supply 2.8V Voltage
15 LCM_VLCD_2V8 Power Supply 2.8V Voltage
16 TP_RST_1V8 TP_RST_1V8
17 TP_I2C_SCL TP_I2C_SCL
18 TP_I2C_SDA TP_I2C_SDA
19 TP_INT_1V8 TP_INT_1V8
20 TP_VDDI_TVB NC
21 TP_VCC_2V8 TP_VCC_2V8
22 GND System ground
23 NC NC
24 NC NC
25 GND System ground
26 GND System ground
27 LCM_WLEDK LED Cathode
28 LCM_WLEDK LED Cathode
29 LCM_WLEDA LED Anode
30 LCM_WLEDA LED Anode
