宇锡全面屏6.39寸1080*2340高色域高对比度模组，适用于多模终端，地轨卫星终端，红外车载显示器

深圳宇锡专业OLED屏幕定制厂家，从0.39寸到15.6寸细分行业使用的OLED屏幕，深圳宇锡全面屯有安全库存，便于客户5-10年长周期供应。

特别是手持常用的4.09寸，5寸，5.5寸，6.01寸，6.33寸，6.39寸，6.67寸， 6.82寸，7寸更是每天都在开新项目，每天都在出货。

OLED具有高对比度，高分辨率，高色域，-40℃低温工作，轻薄等很多优点。让越来越多的新项目，客户优先选择OLED屏幕。

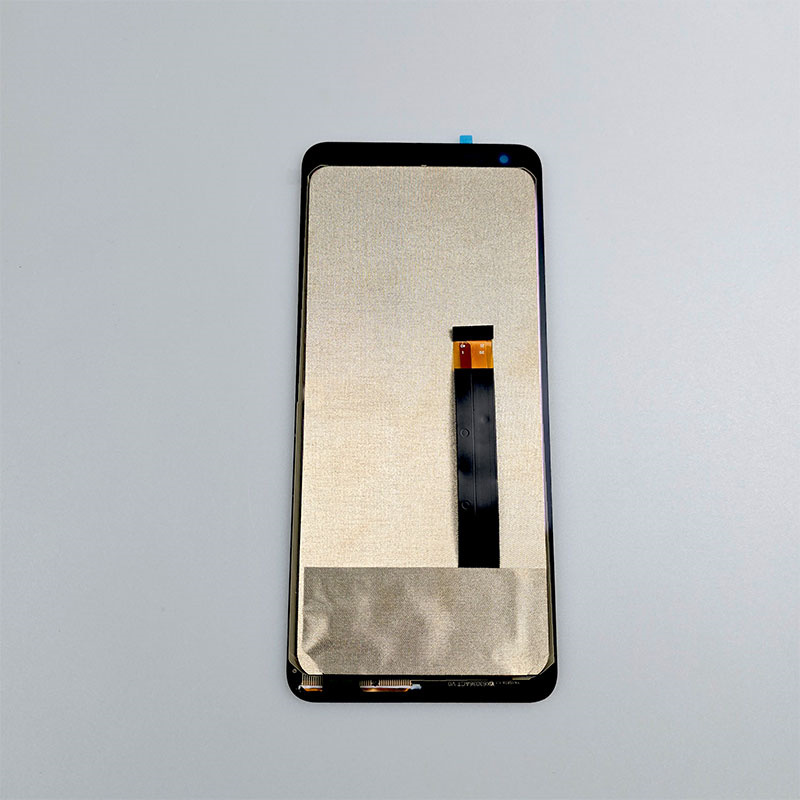

今天推荐的深圳宇锡多模终端，地轨卫星终端，红外车载显示器旗舰型号6.39寸，1080*2340分辨率，带BTL全国产触控IC方案屏幕总成。强大的性能，舒适的人体工学手感结构，关键还是COF工艺全面屏。让很多重点项目控标指定用宇锡的6.39寸Am-oled。

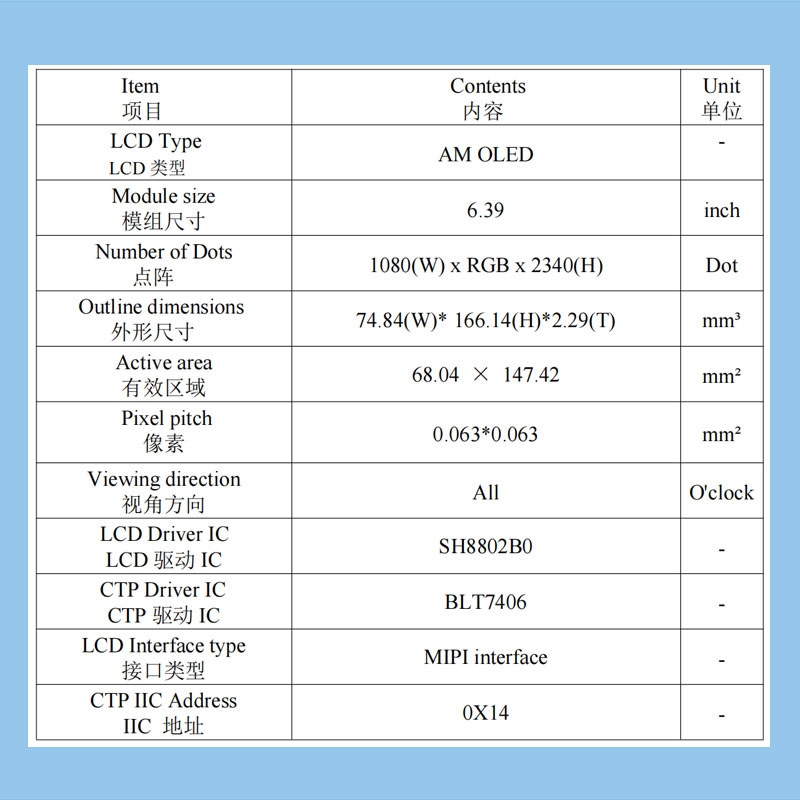

基本描述

LCD 类型AM OLED
模组尺寸 6.39 inch
点阵 1080(W) x RGB x 2340(H) Dot

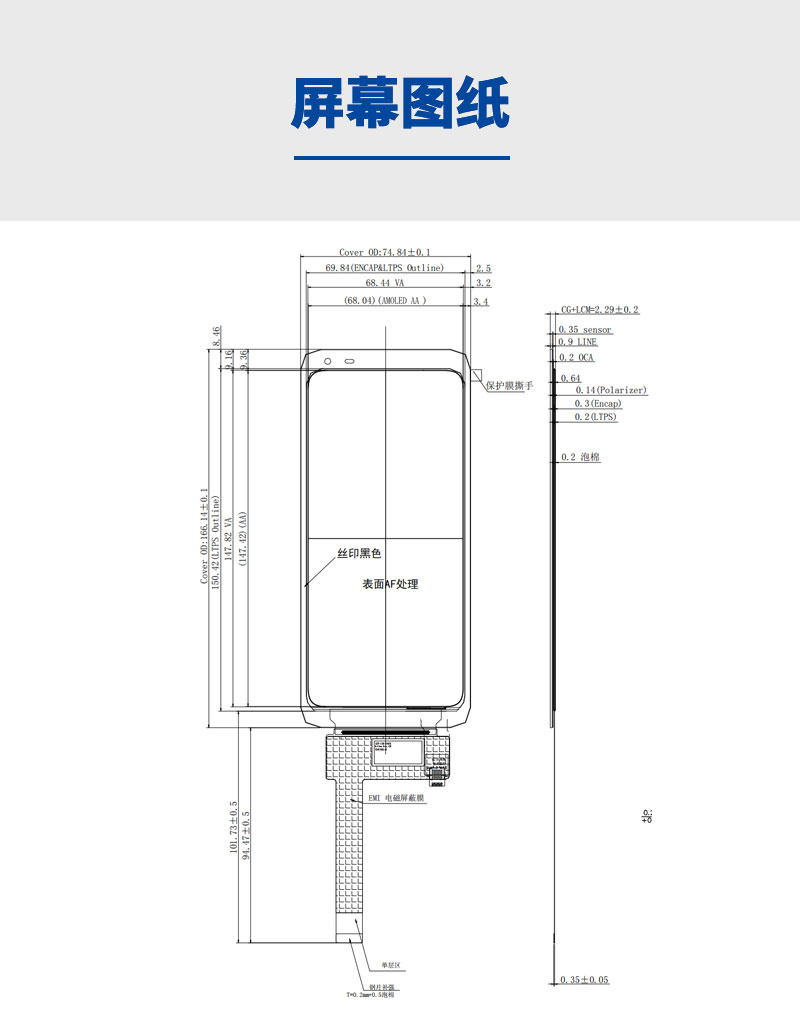

外形尺寸 74.84(W)* 166.14(H)*2.29(T) mm³
有效区域 68.04 × 147.42 mm²
像素 0.063*0.063 mm²
视角方向 All
LCD Driver IC SH8802B0
CTP 驱动 IC BLT7406
接口类型 MIPI
IIC 地址 0X14

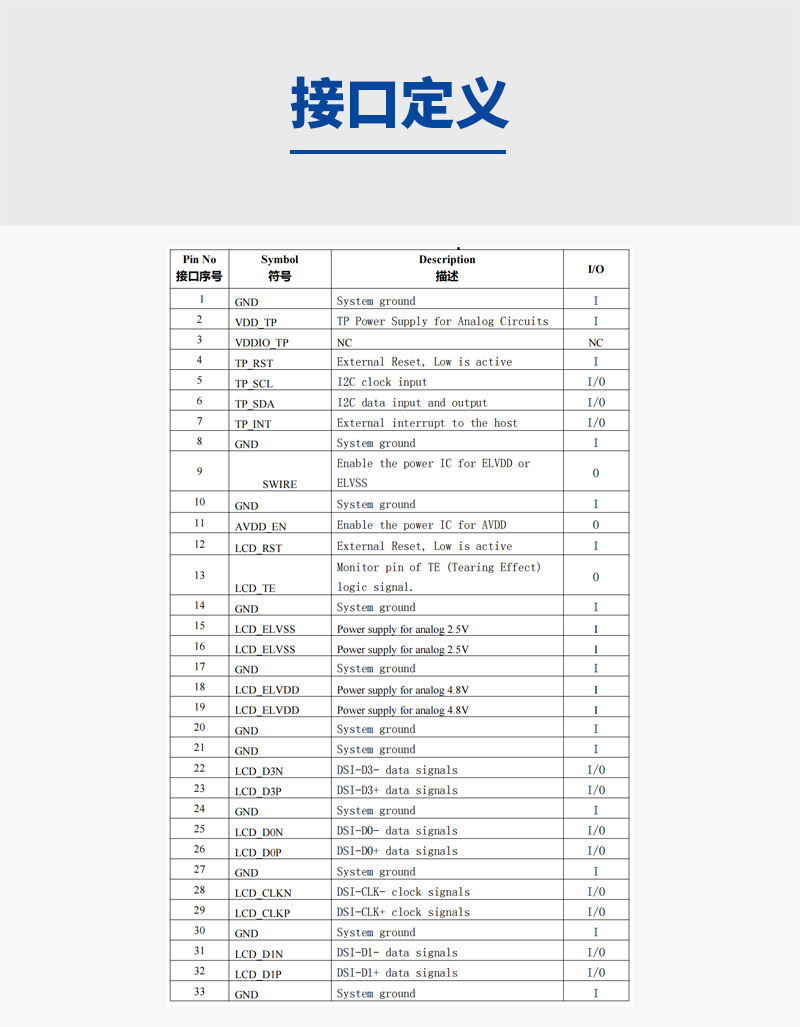

接口定义

1 GND System ground I
2 VDD_TP TP Power Supply for Analog Circuits I
3 VDDIO_TP NC NC
4 TP_RST External Reset, Low is active I
5 TP_SCL I2C clock input I/O
6 TP_SDA I2C data input and output I/O
7 TP_INT External interrupt to the host I/O
8 GND System ground I
9 SWIRE
Enable the power IC for ELVDD or
ELVSS O
10 GND System ground I
11 AVDD_EN Enable the power IC for AVDD O
12 LCD_RST External Reset, Low is active I
13 LCD_TE
Monitor pin of TE (Tearing Effect)
logic signal.O
14 GND System ground I
15 LCD_ELVSS Power supply for analog 2.5V I
16 LCD_ELVSS Power supply for analog 2.5V I
17 GND System ground I
18 LCD_ELVDD Power supply for analog 4.8V I
19 LCD_ELVDD Power supply for analog 4.8V I
20 GND System ground I
21 GND System ground I
22 LCD_D3N DSI-D3- data signals I/O
23 LCD_D3P DSI-D3+ data signals I/O
24 GND System ground I
25 LCD_D0N DSI-D0- data signals I/O
26 LCD_D0P DSI-D0+ data signals I/O
27 GND System ground I
28 LCD_CLKN DSI-CLK- clock signals I/O
29 LCD_CLKP DSI-CLK+ clock signals I/O
30 GND System ground I
31 LCD_D1N DSI-D1- data signals I/O
32 LCD_D1P DSI-D1+ data signals I/O
33 GND System ground I
34 LCD_D2N DSI-D2- data signals I/O
35 LCD_D2P DSI-D2+ data signals I/O
36 GND System ground I
37 LCD_VDDIO Power supply for I/O1.8VV I
38 GND System ground I
39 LCD_AVDD Power supply for analog 6.4V I
40 LCD_VCI Power Supply for Analog Circuits3.3V I
