宇锡6.3寸最轻薄，全面屏显示1080*2340高分辨率，适合消防手持，船用手持，石化防爆，核电手持等多场景使用

项目指标中，分辨率大于等于1080*1920，尺寸大于等于6寸，重量要轻，厚度要薄，要确保5-10年持续供应，

在这个指标之下，深圳宇锡推荐出一款YX63034ACT，oncell省去功能片的特殊工艺，实现超薄。深圳宇锡这款屏是COF工艺，可以实现-40℃低温工作，高色域，高对比度。

高端手持机，液晶屏模组，找宇锡定制！

2025年，林草手持，医疗手持，L+S手持，5G多模终端，消防手持，船用手持，石化防爆，核电手持，等各种场景都可以按照深圳宇锡6.3寸设计，使用。

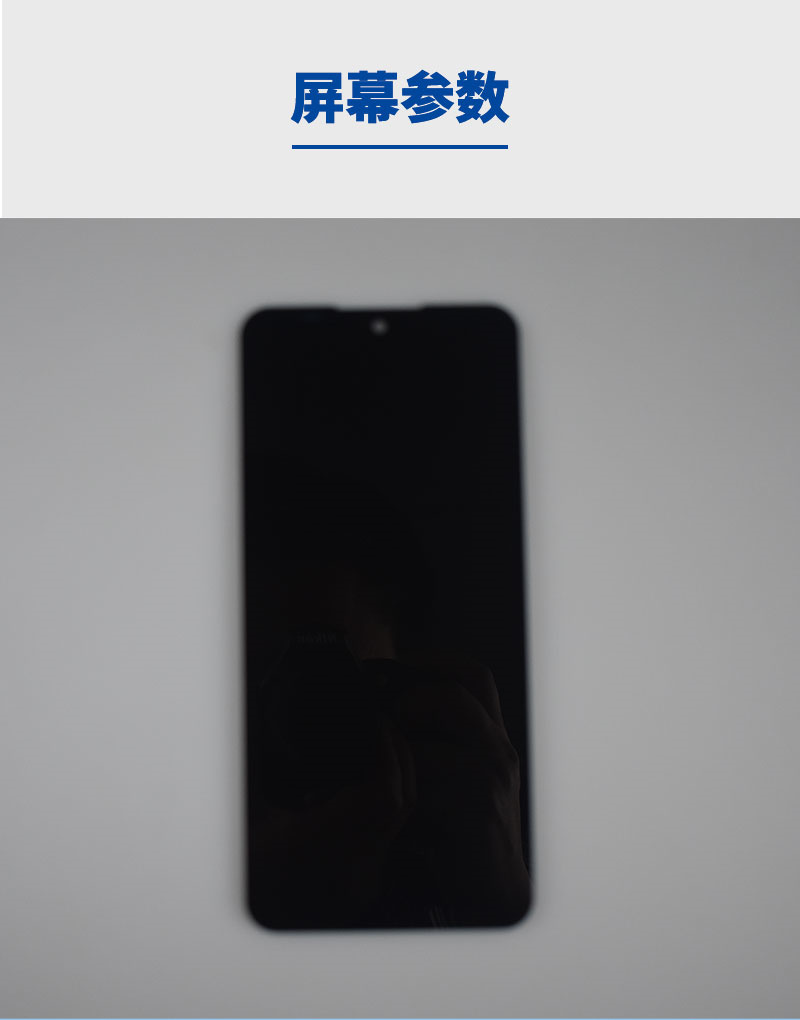

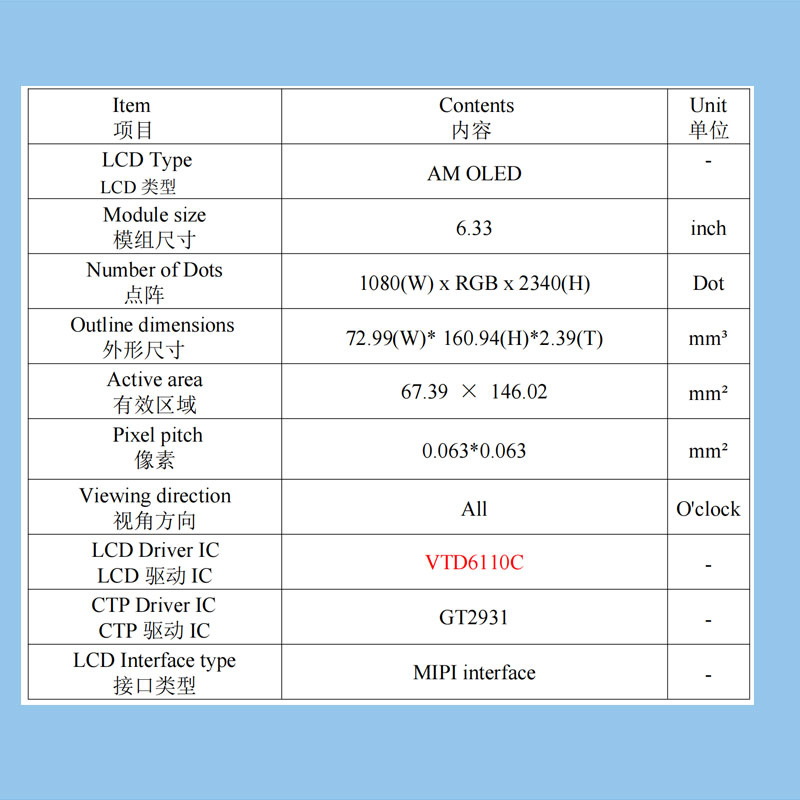

基本描述

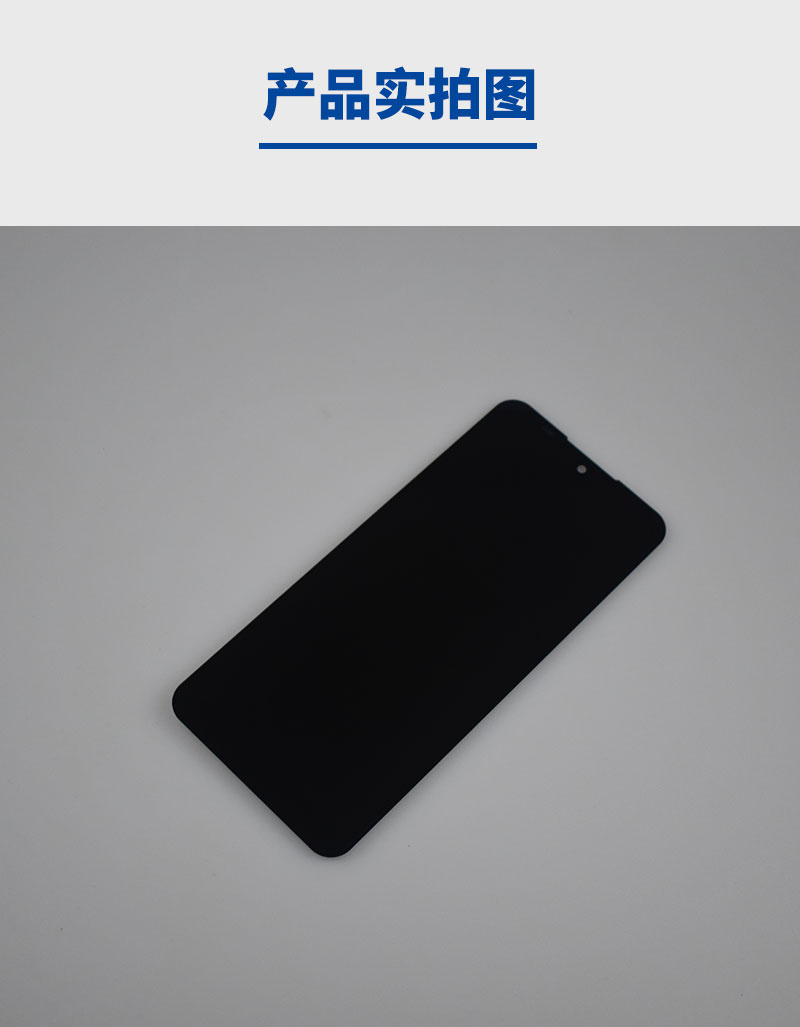

型号：YX63034ACT
LCD 类型AM OLED
模组尺寸 6.33
点阵 1080(W) x RGB x 2340(H)

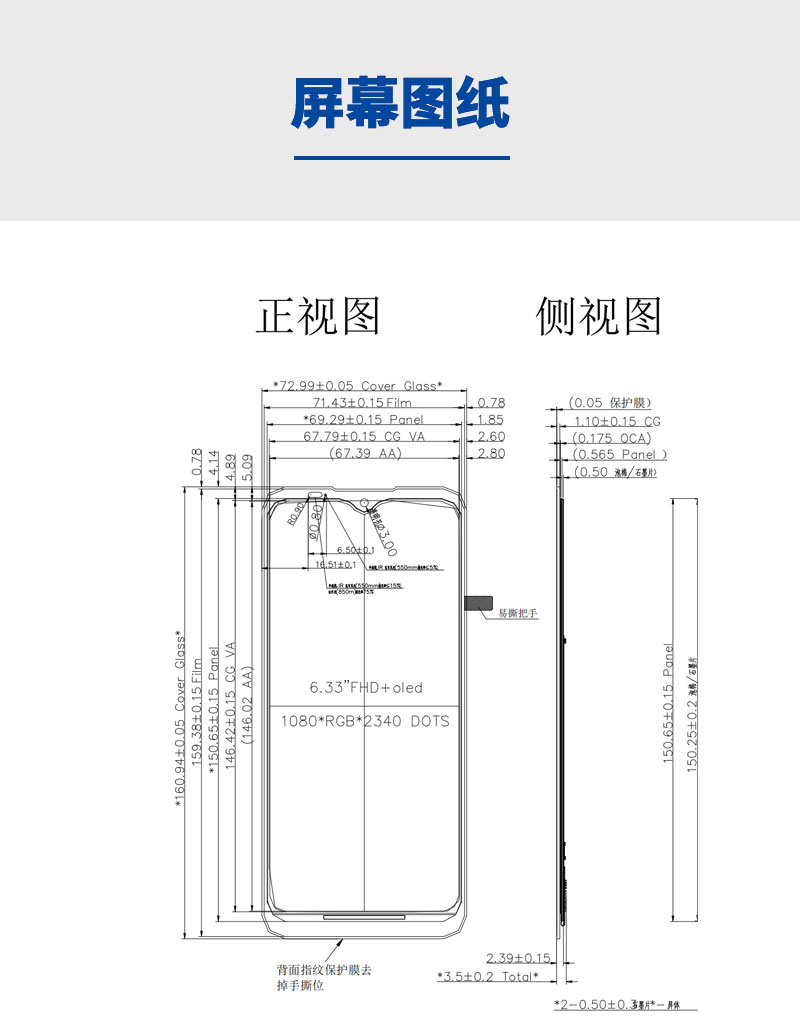

外形尺寸 72.99(W)* 160.94(H)*2.39(T) mm³
有效区域 67.39 × 146.02 mm²
像素 0.063*0.063 mm²
视角方向 All
LCD 驱动 IC VTD6110C
CTP 驱动 IC GT2931
接口类型 MIPI interface

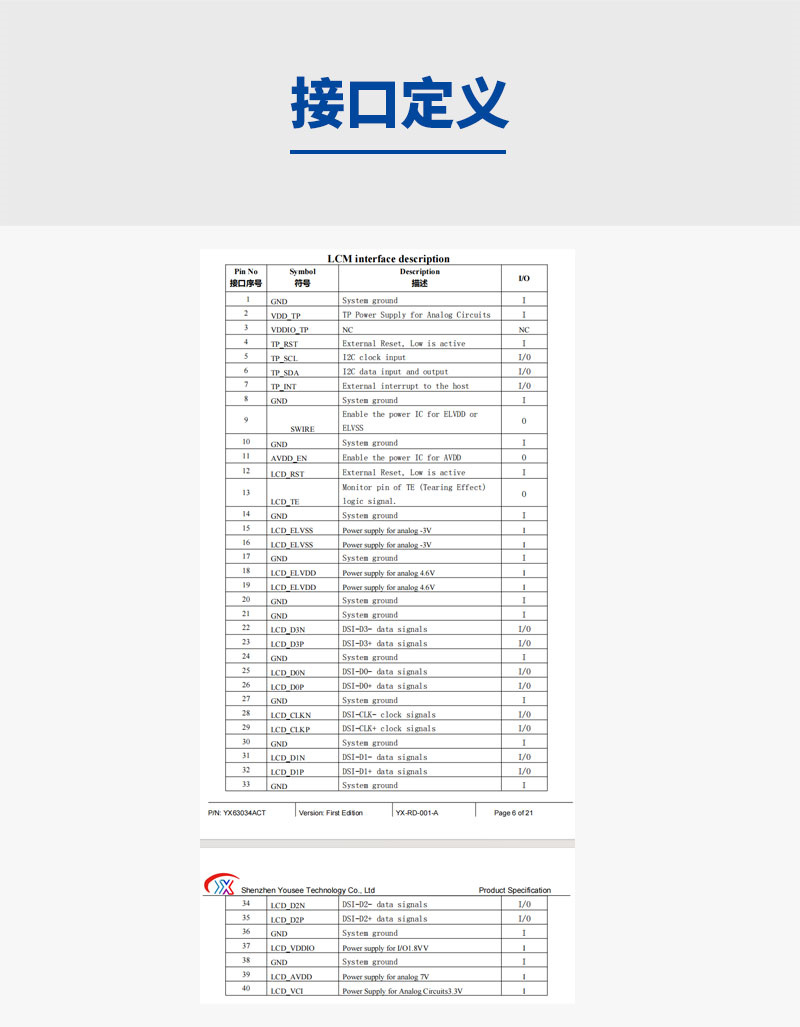

接口定义

1 GND System ground I
2 VDD_TP TP Power Supply for Analog Circuits I
3 VDDIO_TP NC NC
4 TP_RST External Reset, Low is active I
5 TP_SCL I2C clock input I/O
6 TP_SDA I2C data input and output I/O
7 TP_INT External interrupt to the host I/O
8 GND System ground I
9SWIRE
Enable the power IC for ELVDD or
ELVSS
10 GND System ground I
11 AVDD_EN Enable the power IC for AVDD O
12 LCD_RST External Reset, Low is active I
13LCD_TE
Monitor pin of TE (Tearing Effect)
logic signal.
14 GND System ground I
15 LCD_ELVSS Power supply for analog -3V I
16 LCD_ELVSS Power supply for analog -3V I
17 GND System ground I
18 LCD_ELVDD Power supply for analog 4.6V I
19 LCD_ELVDD Power supply for analog 4.6V I
20 GND System ground I
21 GND System ground I
22 LCD_D3N DSI-D3- data signals I/O
23 LCD_D3P DSI-D3+ data signals I/O
24 GND System ground I
25 LCD_D0N DSI-D0- data signals I/O
26 LCD_D0P DSI-D0+ data signals I/O
27 GND System ground I
28 LCD_CLKN DSI-CLK- clock signals I/O
29 LCD_CLKP DSI-CLK+ clock signals I/O
30 GND System ground I
31 LCD_D1N DSI-D1- data signals I/O
32 LCD_D1P DSI-D1+ data signals I/O
33 GND System ground I
34 LCD_D2N DSI-D2- data signals I/O
35 LCD_D2P DSI-D2+ data signals I/O
36 GND System ground I
37 LCD_VDDIO Power supply for I/O1.8VV I
38 GND System ground I
39 LCD_AVDD Power supply for analog 7V I
40 LCD_VCI Power Supply for Analog Circuits3.3V I
