深圳宇锡1.78寸368*448MIPI高分辨率热成像、装备手持、车载设备屏幕总成

针对客户指标要求2寸以内，高分辨率，高色域，高对比度手持设备的需求。

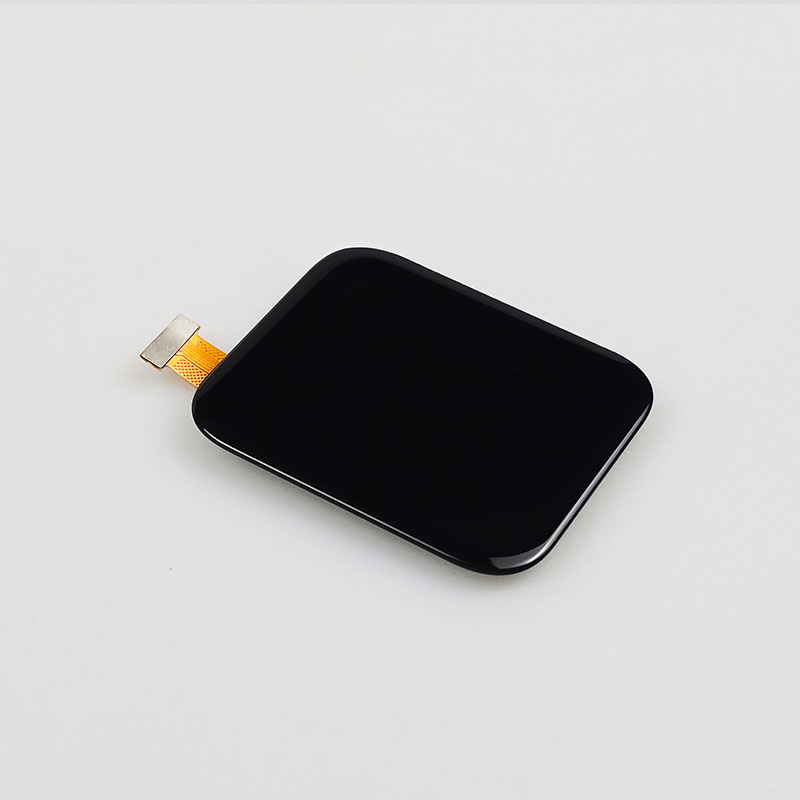

深圳宇锡推出1.78寸368*448 高分辨率，MIPI接口，带GFF全贴合总成。

这款总成是COF工艺，可以定制出窄边框，全面屏的效果。这款总成是OLED的，可以定制-40℃低温工作。广泛用于:热成像装备手持，车载设备。高端手持PDA。高端移动检测设备。

基本描述

LCD 类型 AM OLED
模组尺寸 1.78 inch
点阵 368(W) x RGB x448(H) Dot
外形尺寸 37.1(W)* 43.74(H)*2.04(T) mm³
有效区域 28.704 × 34.944 mm²
像素 0.073*0.073 mm²
视角方向 All
LCD 驱动 IC RM69090
CTP 驱动 ICCST9217
接口类型 MIPI interface

接口定义

1 ELVDD AMOLED power Positive
2 ELVDD AMOLED power Positive
3 GND System ground
4 D0N These pins are DSI-D0+/- differential data signals
5 D0P These pins are DSI-D0+/- differential data signals
6 GND System ground
7 CN These pins are DSI-CLK+/- differential clock signals
8 CP These pins are DSI-CLK+/- differential clock signals
9 GND System ground
10 VDDIO Driver IC digital I/O supply
11 IM0 Interface type selection. 12
LCD_RST
This signal will reset the device and must be
applied to properly initialize the chip. 13 LCD_TE Tearing effect output pin
14 SWIRE Swire protocol setting pin of Power IC
15 GND System ground
16 TP_SWDIO NC
17 MCU_TP_RST External Reset, Low is active
18 MCU_TP_INT External interrupt to the host
19 ALS_INT ALS_INT
20 DIS_I2C_SCL I2C clock input
21 DIS_I2C_SDA I2C data input and output
22 ALS_VDD_1V8 Power supply for analog 1.8V
23 TP_VDD Power supply for analog 3.3V
24 GND System ground
25 GND System ground
26 GND System ground
27 VCI Power supply for analog 3.3V
28 MTP Power supply for OTP. Leave the pin to open when not in use. 29 OVSS AMOLED power Negative
30 OVSS AMOLED power Negative
31-34 GND System ground
