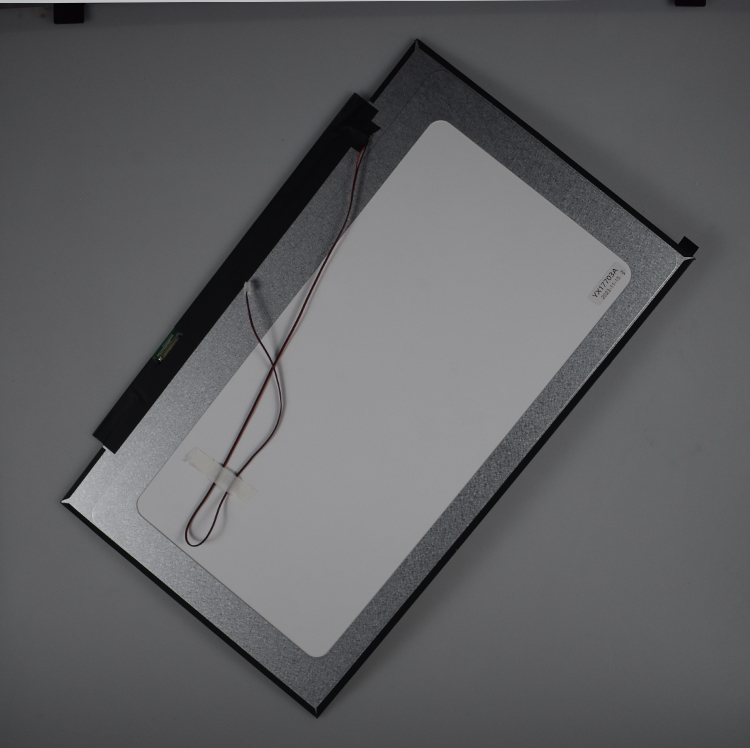

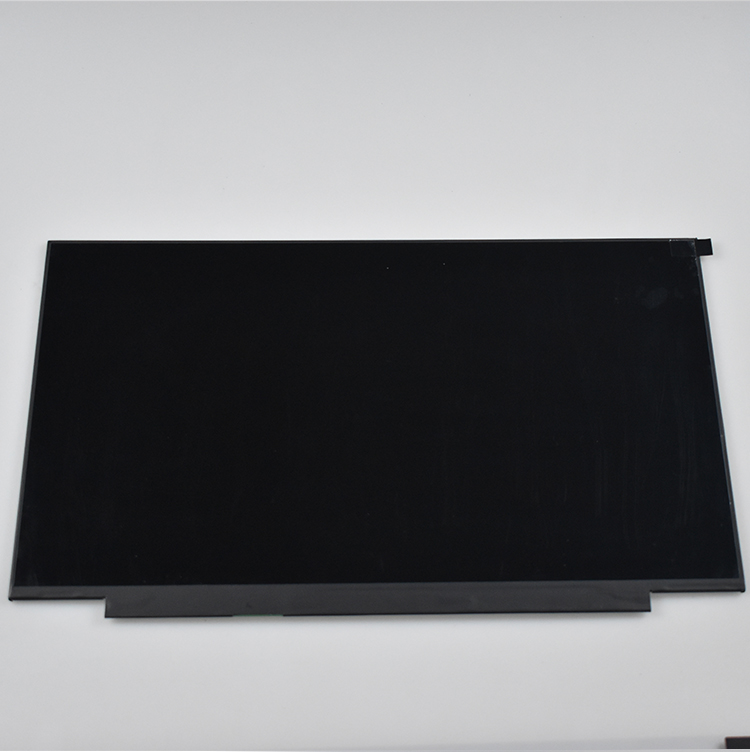

深圳宇锡17.3寸1920*1080分辨率100%色域高亮超薄-40℃低温工作显示屏

深圳市宇锡科技定位，打造最高端运用的液晶屏研发&生产工厂。液晶屏的核心技术在面板和IC，我们模组厂没有特殊核心技术。但是，我们深圳宇锡的客户群都是国内行业顶尖单位或者上市公司或者机关研究所。我们做屏做的是开源，我们成为客户的一个屏事业部。我们配合按照客户非常规的指标研发&生产。每个细节都会准时给客户技术，产品对应人员汇报。

17.3寸，1920*1080分辨率，我们开模了背光，为了完成某大项目，要求的高色域，高亮度，-40℃低温工作，亮度均一度，国军标电磁兼容。我们配套了全国产化触摸屏。水下触摸，也调试完成。
欢迎党政军或者别的高端客户有屏幕和触摸定制需求的联系我们。

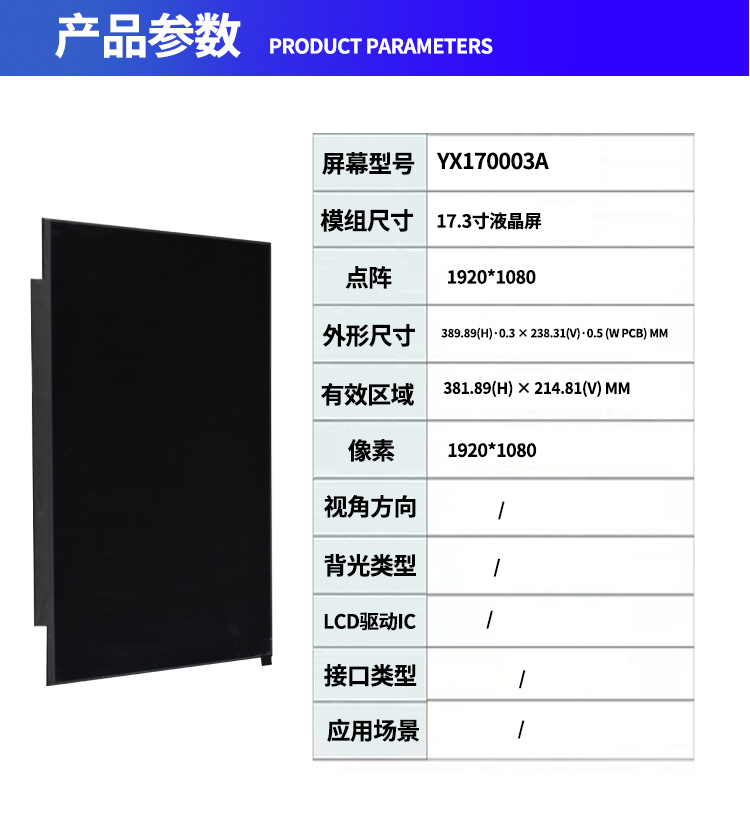

1、屏幕参数

Active area 381.89(H) ശ214.81(V) mm
Number of pixels 1920 (H) ശ1080 (V) pixels
Pixel pitch 198.9(H) ശ198.9(V) um
Pixel arrangement RGB Vertical stripe
Display colors 16.7M(8bit)
Color gamut 100%typ.95%min. sRBG
Display mode Normally Black

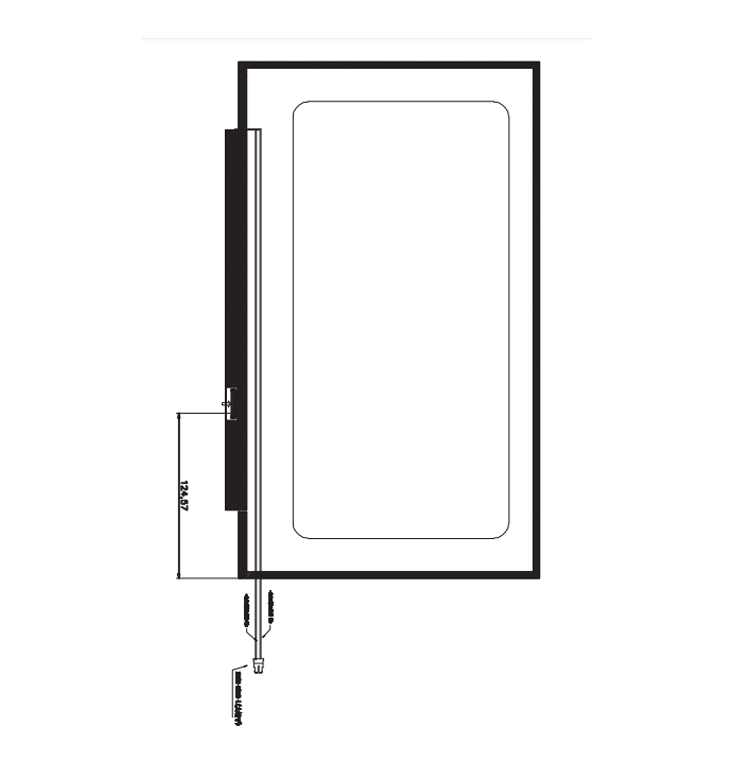

Dimensional outline 389.89(H) ·0.3 ശ 238.31(V)· 0.5 (W PCB) mm
Weight 500(max) g
Surface treatment AG
Surface hardness 3H

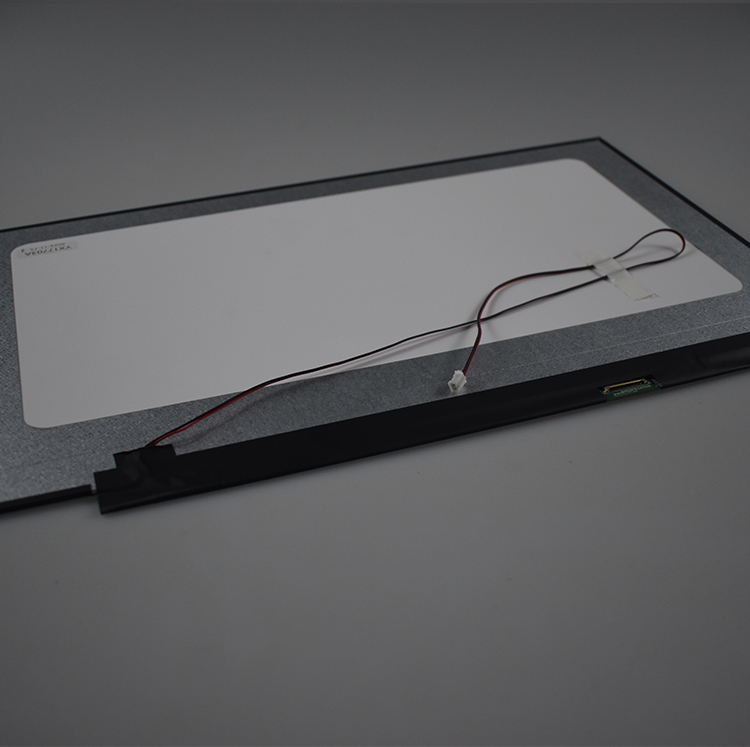

Back-light Bottom edge side, 1-LED lighting bar type Note 1

2、引脚定义

1 NC No Connect
2 H_GND Ground
3 LANE1_N eDP RX Channel 1 Negative
4 LANE1_P eDP RX Channel 1 Positive
5 H_GND Ground
6 LANE0_N eDP RX Channel 0 Negative
7 LANE0_P eDP RX Channel 0 Positive
8 H_GND Ground
9 AUX_CH_P eDP AUX CH Positive
10 AUX_CH_N eDP AUX CH Negative
11 H_GND Ground
12 VCC LCD logic and driver power
13 VCC LCD logic and driver power
14 LCD Self Test LCD Panel Self Test Enable (Optional)
15 GND LCD logic and driver ground
16 GND LCD logic and driver ground
17 HPD HPD signal pin
18 BL_GND LED Backlight ground
19 BL_GND LED Backlight ground
20 BL_GND LED Backlight ground
21 BL_GND LED Backlight ground
22 BL ENABLE LED Backlight control on/off control
23 BL PWM System PWM signal input for dimming
24 NC Reserved Reserved for LCD manufacture’s use
25 NC Reserved Reserved for LCD manufacture’s use
26 VLED LED Backlight power (12V Typical)
27 VLED LED Backlight power (12V Typical)
28 VLED LED Backlight power (12V Typical)
29 VLED LED Backlight power (12V Typical)
30 NC Reserved No Connect
