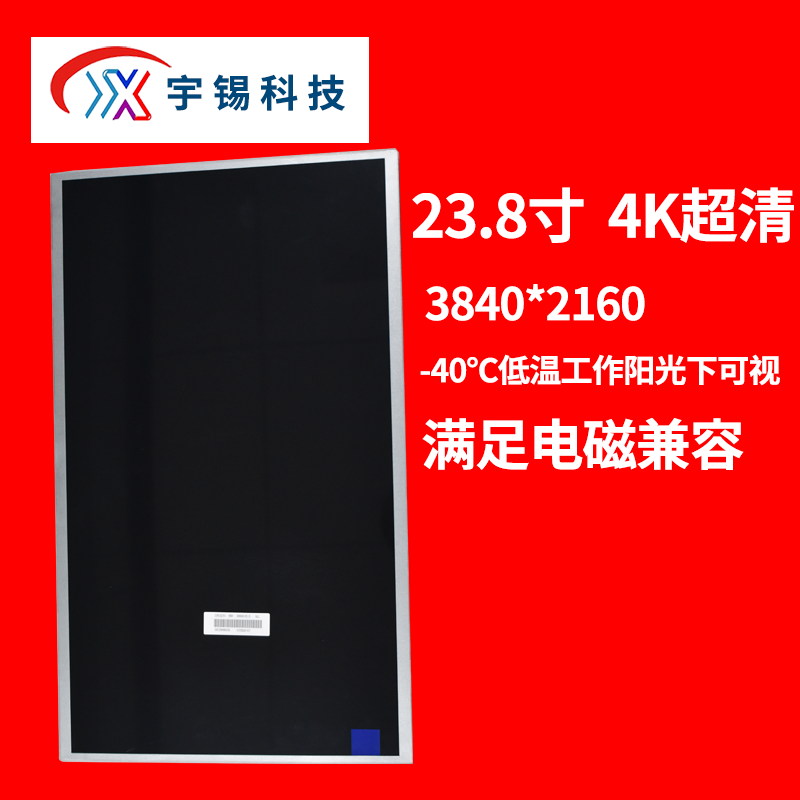

深圳宇锡23.8寸 4k超清3840*2160 -40℃低温工作阳光下可视屏幕定制&生产

深圳宇锡科技配备三条全自动，高低温实验室，AOI绑定爆破粒子软件设备，全面布局中大尺寸-40℃低温工作的，阳光下可视的，满足电磁兼容的，带USB国产化触摸的，满足沙尘试验，满足履带车震动实验的液晶屏研发&生产。

工厂坐落在产业链齐全，国产化芯片的源头，新技术前沿的深圳宝安机场附近。

可以定制，有自己FAE配合调试，反应速度快，自己研发&生产品质可控，出了问题可以快速解决等很多优点。

我们工厂已经配合100多家研究所，包括预研的已经突破2000多个案例。

今天发布23.8寸，4k分辨率，600亮度，阳光下可视的屏幕

产品描述

Active area 527.04 (H) Ý296.46(V) mm
Number of pixels 3840(H) ശ2160(V) pixels
Pixel pitch 0.13725(H) ശ0.13725(V) mm
Pixel arrangement RGB Vertical stripe
Display colors 1.07B colors
Display mode Normally Black
Dimensional outline 545.0 (H) Ý323.4(V) Ý12.5(D) typ. mm
Detail refer
to drawing
Weight TBD g
Surface Treatment Haze 25%, 3H
DFNOLJKW
Edge side, 2-LED Lighting Bar type

引脚定义

1 VDD Power Supply (10.0V)
2 VDD Power Supply (10.0V)
3 VDD Power Supply (10.0V)
4 VDD Power Supply (10.0V)
5 VDD Power Supply (10.0V)
6 GND Ground
7 GND Ground
8 NC No Connection
9 NC No Connection
10 GND Ground
11 HPD Hot Plug Detection Signal
12 GND Ground
13 DAUXN AUX_CHN Component Signal for Auxiliary Channel
14 DAUXP AUX_CHP True Signal for Auxiliary Channel
15 GND Ground
16 DRX0P Lane3P True Signal for Main Link 0
17 DRX0N Lane3N Component Signal for Main Link 0
18 GND Ground
19 DRX1P Lane3P True Signal for Main Link 1
20 DRX1N Lane3N Component Signal for Main Link 1
21 GND Ground
22 DRX2P Lane3P True Signal for Main Link 2
23 DRX2N Lane3N Component Signal for Main Link 2
24 GND Ground
25 DRX3P Lane3P True Signal for Main Link 3
26 DRX3N Lane3N Component Signal for Main Link 3
27 GND Ground
28 GND Ground
29 NC No Connection
30 BIST BIST Function
