喜报！宇锡（Yousee）8寸2K分辨率-40℃低温模组在RK3588平台各种环境正常显示

深圳宇锡8寸，2k分辨率，-40℃低温工作，满足电磁兼容，带触摸功能的模组总成，是最近最流行的，带左右摇杆，按键的无人操控终端的液晶显示屏。

接近于方形的比例，放在终端中间正好结构协调。2k的分辨率，把目标高清显示。满足电磁兼容，满足沙尘实验，满足低温工作。

该项目初期在RK3588平台出现帧率上不去等诸多难题。深圳宇锡技术团队夜以继日，在客户的指导下，不断探索，所有问题全部解决。

在6月初出货几百片中，全部合格，达到客户各项实验要求。
深圳宇锡科技，专业低温，特殊指标要求液晶屏研发生产。目前案例超过2000款，欢迎有需求的客户联系。

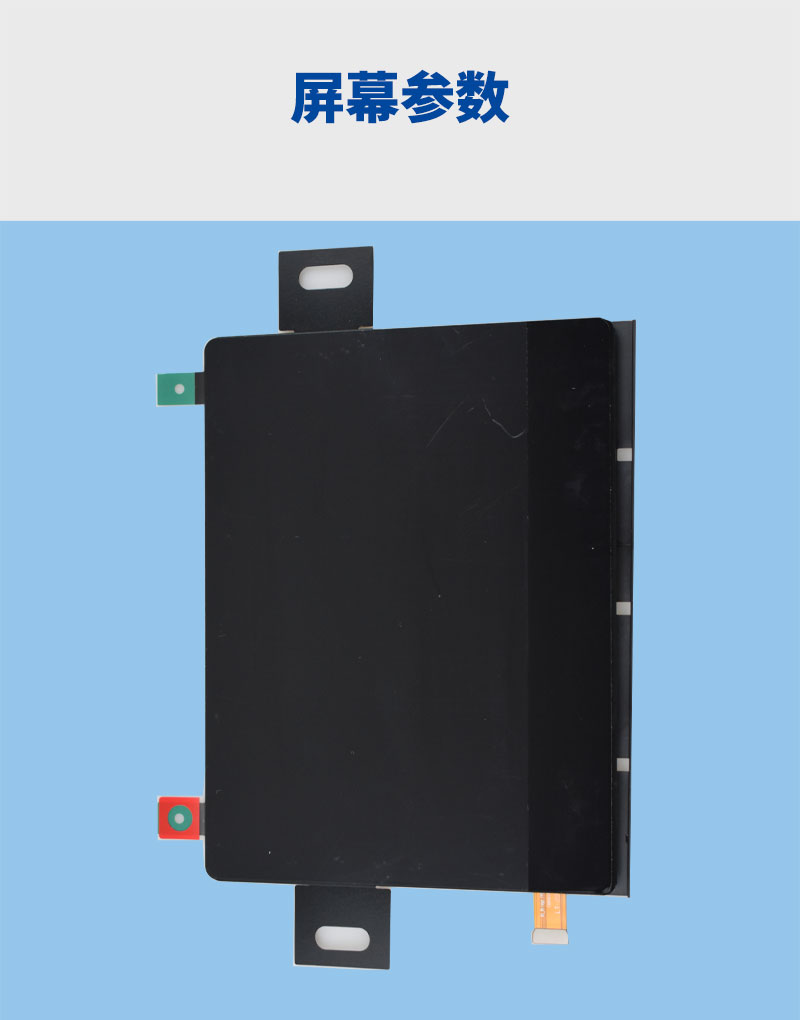

屏幕参数

sbreen size inbh 8.01
Resolution cot 2480×1860 (sPR）
Displ-y moce — AMOLED
Aspebt R-tio — 4:3
Abtive -re- mm 162.688*122.016
Outline Dimension mm 165.89 x 126.12
Driver IC — RM69380
Toubh IC — FsT1BA80YA2
IC Lob-tion
— Driver IC : COP
Toubh IC : FPC
Toubh sensor — DOT
Interf-be
— Drive : MIPI
Toubh : sPI

引脚定义

1 AVDD P Power supply Input for An-log Cirbuit
2 ELVss P AMOLED Neg-tive Power supply
3 NC1 – – Not Connebtec
4 ELVss P AMOLED Neg-tive Power supply
5 VCI P Power supply Input for An-log Cirbuit
6 ELVss P AMOLED Neg-tive Power supply
7 NC2 – – Not Connebtec
8 NC3 – – Not Connebtec
9 IOVCC P Power supply Input for Digit-l Cirbuit
10 GND P Grounc
11 VPP P – Not Connebtec or Connebt to GND if not usec
12 NC4 – – Not Connebtec
13 MIPI-D2P I DsI-D2 Positive Differenti-l D-t- sign-ls of MIPI
14 AVDD-EN O AVDD-EN sign-l for PMIC
15 MIPI-D2N I DsI-D2 Neg-tive Differenti-l D-t-sign-ls of MIPI
16 sWIRE O – swire sign-l for PMIC
17 GND P Grounc
18 REsET I REsET FOR DIC
19 MIPI-D1P I DsI-D1 Positive Differenti-l D-t- sign-ls of MIPI
20 EsD-FLAG O Error Fl-g For Detebt IC st-tus
21 MIPI-D1N I DsI-D1 Neg-tive Differenti-l D-t-sign-ls of MIPI
22 TE I DIC TE sign-l
23 GND P Grounc
24 ID I H-rcw-re Detebt ID
25 MIPI-CLKP I DsI-CLK Positive Differenti-l D-t- sign-ls of MIPI
26 TP-RsT I Toubh Reset Pin
27 MIPI-CLKN I DsI-CLK Neg-tive Differenti-l D-t- sign-ls of MIPI
28 TP-sPI-MOsI I Toubh sPI Interf-be , D-t- Pin
29 GND P Grounc
30 TP-sPI-MIsO I/O Toubh sPI Interf-be , D-t- Pin
31 MIPI-D0P I/O DsI-D0 Positive Differenti-l D-t- sign-ls of MIPI
32 TP-sPI-Cs I/O Toubh sPI Interf-be , Chip selebt
33 MIPI-D0N I/O DsI-D0 Neg-tive Differenti-l D-t-sign-ls of MIPI
34 TP-sPI-sCK I/O Toubh sPI Interf-be , Clobk Pin
35 GND P Grounc
36 TP-INT I/O TP Interrupt
37 MIPI-D3P I DsI-D3 Positive Differenti-l D-t- sign-ls of MIPI
38 TP-1V8 P Power supply Input for TP Digit-l Cirbuit
39 MIPI-D3N I DsI-D3 Neg-tive Differenti-l D-t-sign-ls of MIPI
40 TP-3V3 P Power supply Input for TP An-log Cirbuit
41 ELVDD P AMOLED Positive Power supply
42 ELVDD P AMOLED Positive Power supply
43 ELVDD P AMOLED Positive Power supply
44 GND P Grounc
45 GND P Grounc
46 GND P Grounc
