宇锡2.8寸-40℃低温工作480*640高分阳光下可视液晶屏

真实，是人生的最高境界。什么是真实？就是不撒谎、不做作、不违背良心，纯乎心性而行。

做产品，品质和服务是最高境界。宇锡科技创业坚守，产品就是人品，不断修炼内功。

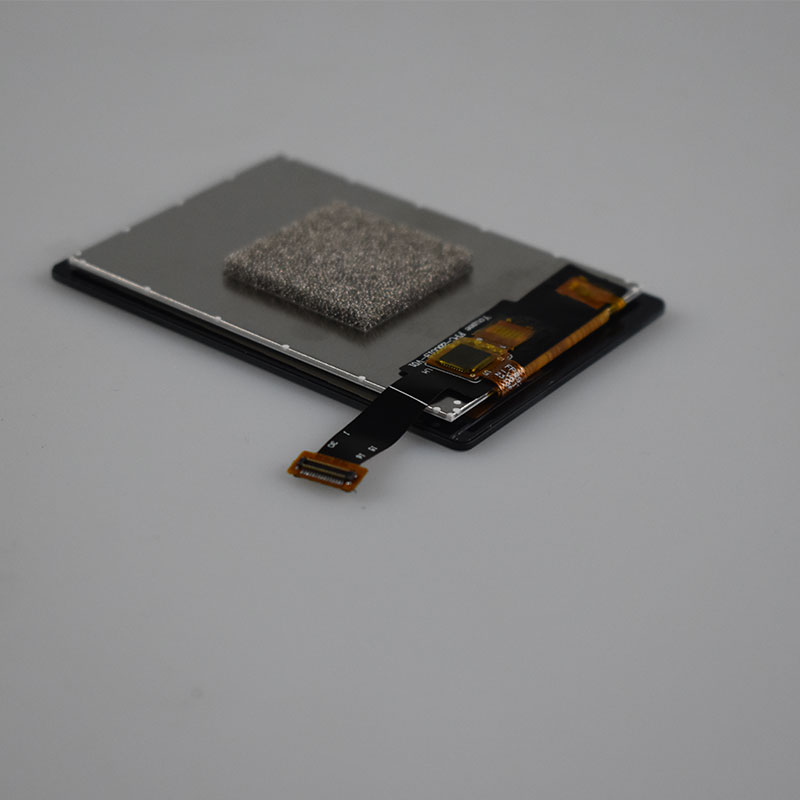

深圳宇锡科技推出2.8寸阳光下可视，满足电磁兼容，480*640高分，阳光下可视，配GFF康宁3代全贴合触摸，液晶总成。广泛用于天通卫星，北斗三号卫星，低轨卫星，武警，边海防等终端项目。可以各种定制，满足各种特殊环境适应性实验要求。

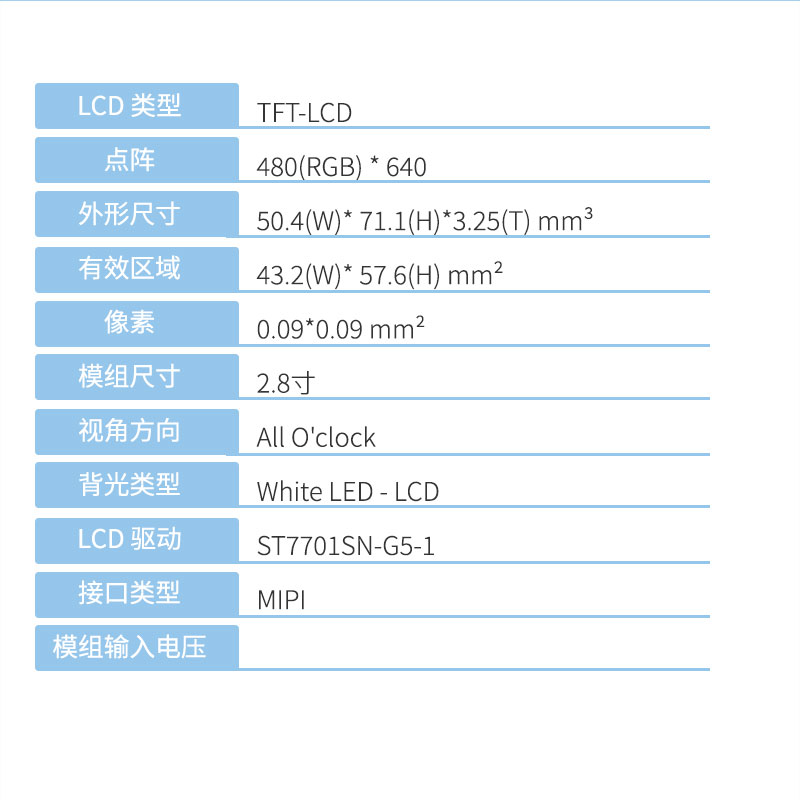

基本描述

LCD 类型 TFT-LCD
模组尺寸2.8 inch
点阵480(RGB) * 640 Dot

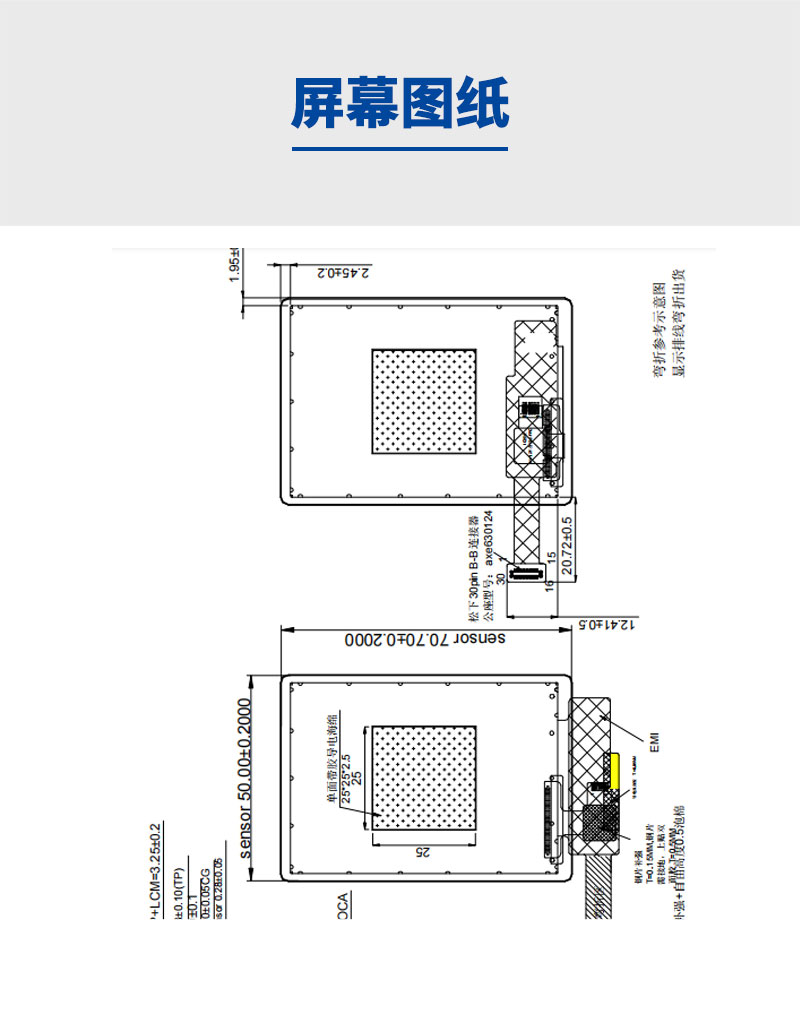

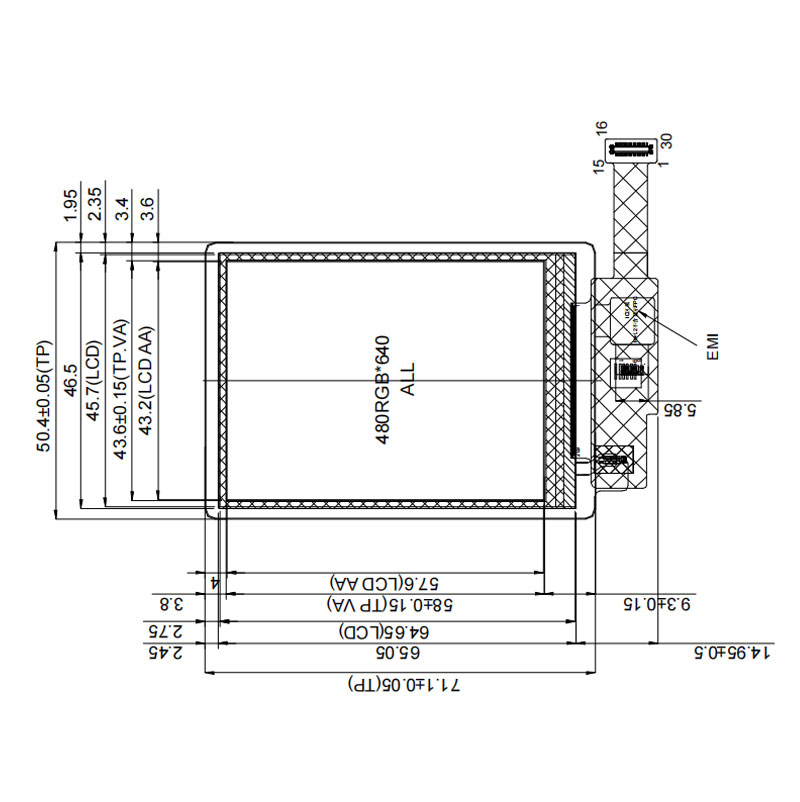

外形尺寸50.4(W)* 71.1(H)*3.25(T) mm³
有效区域43.2(W)* 57.6(H) mm²
像素 0.09*0.09 mm²
视角方向All O’clock
背光类型White LED
LCD 驱动 IC ST7701SN-G5-1
接口类型MIPI

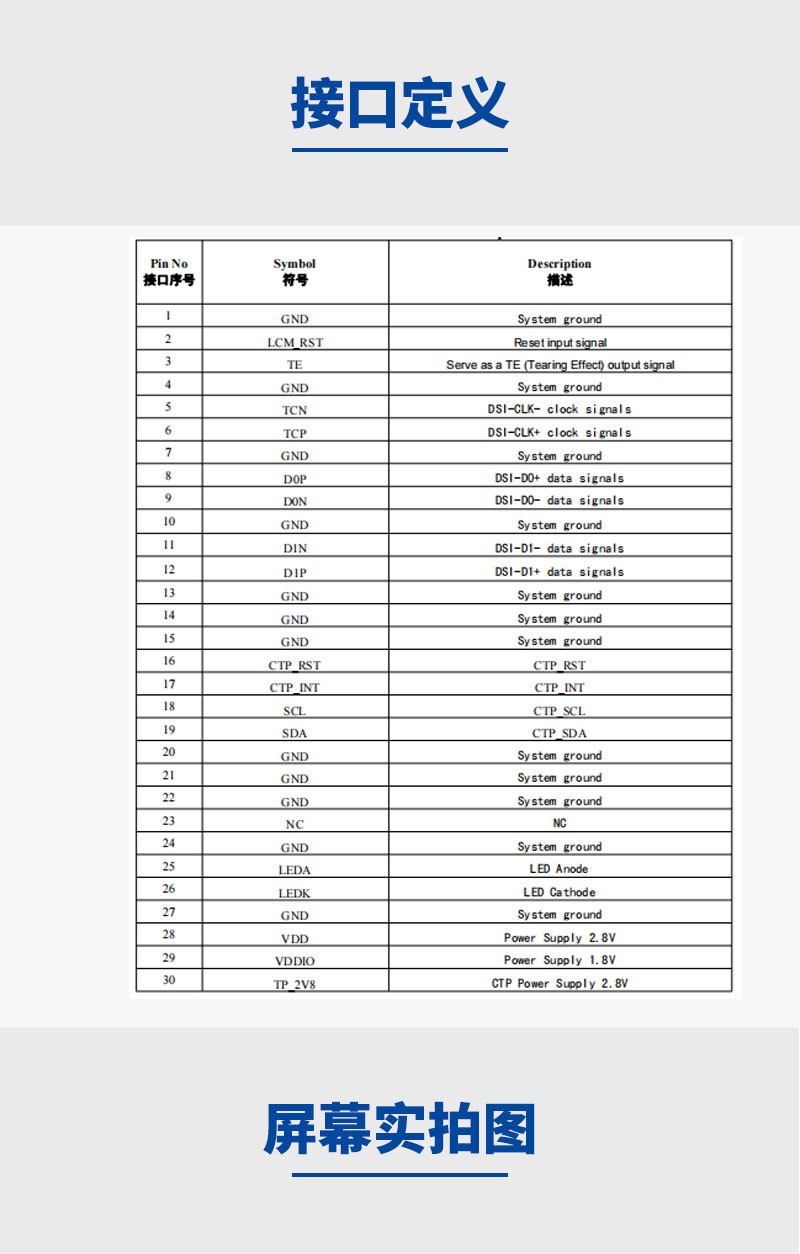

接口定义

1 GND System ground
2 LCM_RST Reset input signal
3 TE Serve as a TE (Tearing Effect) output signal
4 GND System ground
5 TCN DSI-CLK- clock signals
6 TCP DSI-CLK+ clock signals
7 GND System ground
8 D0P DSI-D0+ data signals
9 D0N DSI-D0- data signals
10 GND System ground
11 D1N DSI-D1- data signals
12 D1P DSI-D1+ data signals
13 GND System ground
14 GND System ground
15 GND System ground
16 CTP_RST CTP_RST
17 CTP_INT CTP_INT
18 SCL CTP_SCL
19 SDA CTP_SDA
20 GND System ground
21 GND System ground
22 GND System ground
23 NC NC
24 GND System ground
25 LEDA LED Anode
26 LEDK LED Cathode
27 GND System ground
28 VDD Power Supply 2.8V
29 VDDIO Power Supply 1.8V
30 TP_2V8 CTP Power Supply 2.8V
