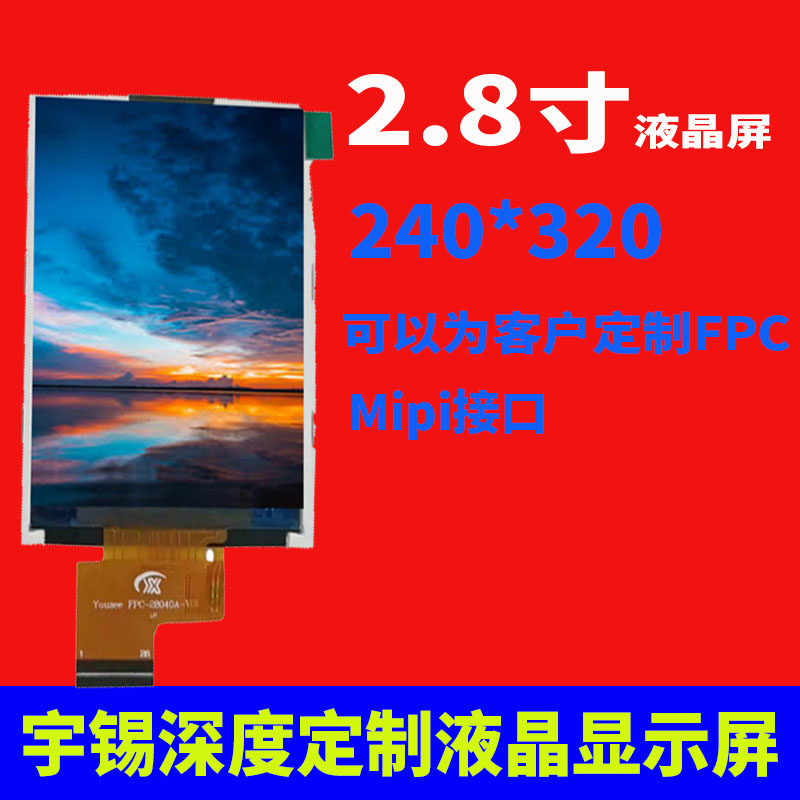

2.8寸液晶屏 240*320 Mipi接口屏

宇锡（Yousee）YX28040A科技—工业级别，屏幕研发，生产厂家。
大家都听过2.8寸有240*320 TN/IPS屏幕有MCU和SpI接口。
其实Mipi接口也是有的。

2.8寸做Mipi接口，分辨率可以做两种240*320和480*640。
可以为客户定制FPC，定制触摸，定制屏幕亮度。

欢迎有需求的客户和方案，联系我司邹生：15818552076

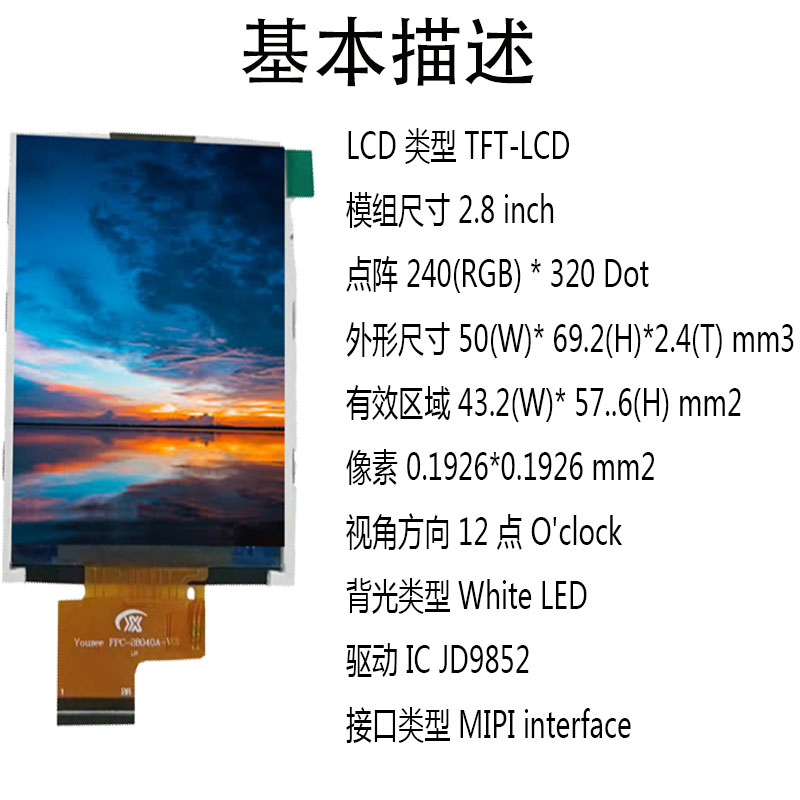

LCD 类型 TFT-LCD
模组尺寸 2.8 inch
点阵 240(RGB) * 320 Dot
外形尺寸 50(W)* 69.2(H)*2.4(T) mm3
有效区域 43.2(W)* 57..6(H) mm2
像素 0.1926*0.1926 mm2
视角方向 12 点 O’clock
背光类型 White LED
驱动 IC JD9852
接口类型 MIPI interface

1 GND System ground
2 D0N LED Cathode
3 D0P LED Anode
4 GND System ground
5 NC NC
6 NC NC
7 GND System ground
8 CN DSI-CLK- clock signals
9 CP DSI-CLK+ clock signals
10 GND System ground
11 IOVCC Power Supply 1.8V Voltage
12 IOVCC Power Supply 1.8V Voltage
13 NC NC
14 ID LCM_ID
15 RESET This signal will reset the device and it must be applied to properly
initialize the chip.
16 GND System ground
17 LEDA LED Anode
18 LEDA LED Anode
19 NC NC
20 LEDK LED Cathode
21 LEDK LED Cathode
22 GND System ground
23 GND System ground
24 NC NC
25 VCC Power Supply 2.8V
26 VCC Power Supply 2.8V
